Product Name:

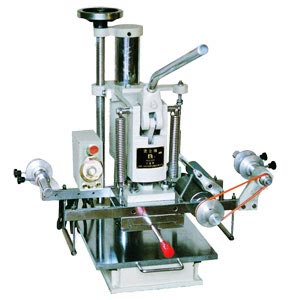

Hand Pressure Single Elbow Type Hot Stamping Machine
NS-3B
Feature:
1.Save space and easy to operate.
2.With single elbow, For small surfaces hot stamping which need hard pressure.
3.Auomatic temperature controlling equipment(made of Ger-many) to adjust the temperature accurately, And last long.
4.Electric heating tube as heating equipment.Good in quality and long lasting.
5.Sequent-motion foil rolling structure-Accurate adjustment can be made during process without losing gold foil.
6.The hot plate can be pulled out and easy to replace.
Application:
To use in printing of name cards, photos, shoe cover, shoe pad, leather belt, wallets, or other small items.Specifications:
|
型式 MODLE |
NS-3B |
|
熱盤面積 Size fo Hot Plate |
140*170m/m |
|
電源及電熱 Power Source & Heating |
AC 110V or 220V, 800w |
|
溫度調節 Regulation Of Temperature |
0-300℃ |
|
行程 Stroke |
45m/m |
|
最大開度 Maximum Gap |
170m/m |
|
自動卷箔 Roller Leaf Feeding Device |
1.5~170m/m |
|
作業臺面積 Area of Base Plate |
300*300m/m |
|
最大壓力 Maximum Pressure |
600kgs |
|
重量 Weight |
75kgs |
|
機械尺寸 Dimensions |
L600*W500*H700m/m |
