Product Name:

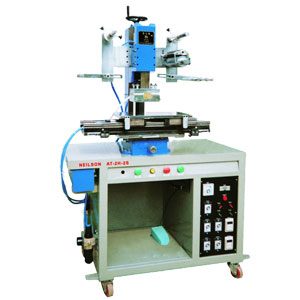

Air Pressure Single Elbow Hot Stamping Machine
AT-2HE
Feature:
Air pressure cylinder carrys the single elbow struture, strong pressure and less consumption in air pressure. With strong body, stability and durableness. Foil rolling design in motor type. The feeding distance of rolling foil is accurate and does not be influenced by the strlke of the main shafe.
Application:
Suitable to medium and small surface which need hard pressure.Specifications:
型式 MODLE |
AT-2H/2HE |
熱盤面積 Size Of Hot Plate |
140*170m/m |
電源及電熱 Power Source & Heating |
AC220, 800W |
溫度調節 Regulation of Temperation |
0-400℃ |
時間控制 Time Control |
0-6S |
自動卷箔 Roller Leaf Feeding Device |
0.5-170m/m |
氣缸直徑 Cylinder Diameter |
Φ50m/m |
行程 Stroke |
45 m/m |
作業臺面積 Size Of Base Plate |
340*370m/m |
最大壓力 Maximum Pressure |
1000kgs |
最大開度 Maximum Gap |
200m/m |
重量 Weight |
240kgs |
機械尺寸 Dimensions |
L1140*W620*H1660m/m |
